General product description for doors with GRS
The LSD hinges "Made in Germany" convince by their easy installation at the original mounting points and their perfect fit. By the adjustable roller guiding of the Guided Roller System (GRS), the entire movement of the swivel arm is forced in each position by the two-dimensional adjustment possibility with adjustable guide rollers of the roller bearing in order to ensure a precise opening and closing of the door. A gas spring which matches the weight of the door keeps the door in position when it is completely opened. Proved in everyday life: With the LSD hinges, the original doors first open up to 30° outwards, then they are guided safely upwards without to immediately slide upwards independently.
100% Vehicle specific
Each LSD application was newly developed for each vehicle type. All major vehicle dimensions were considered. Therefore each application is individually and tailor made.
- Functional overall solution for every day
- Installation at the original mounting points without structural changes
- part certificate
- Tested according to the Traffic Regulations, ECE- and EC Directives
EAN-Code: 4250173318495

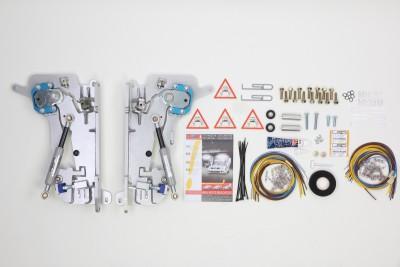

Delivery content: Set (2 pcs.) incl. wire set
| Manufacturer | Model | Type | Engine | Vehicle shape | Fuel | Performance | Cubic capacity | Cylinder | Four wheel drive |
|---|---|---|---|---|---|---|---|---|---|
| AUDI | TT (8N3) (10/1998-06/2006) | 8N3 | 1.8 T quattro | Coupe | Petrol | 132 KW | 1781 ccm | 4 Cylinder | Yes |
| AUDI | TT (8N3) (10/1998-06/2006) | 8N3 | 1.8 T quattro | Coupe | Petrol | 134 KW | 1781 ccm | 4 Cylinder | Yes |
| AUDI | TT (8N3) (10/1998-06/2006) | 8N3 | 1.8 T quattro | Coupe | Petrol | 140 KW | 1781 ccm | 4 Cylinder | Yes |
| AUDI | TT (8N3) (10/1998-06/2006) | 8N3 | 1.8 T quattro | Coupe | Petrol | 165 KW | 1781 ccm | 4 Cylinder | Yes |
| AUDI | TT (8N3) (10/1998-06/2006) | 8N3 | 1.8 T quattro | Coupe | Petrol | 168 KW | 1781 ccm | 4 Cylinder | Yes |
| AUDI | TT (8N3) (10/1998-06/2006) | 8N3 | 1.8 T quattro | Coupe | Petrol | 180 KW | 1781 ccm | 4 Cylinder | Yes |
| AUDI | TT (8N3) (10/1998-06/2006) | 8N3 | 1.8 T | Coupe | Petrol | 110 KW | 1781 ccm | 4 Cylinder | No |
| AUDI | TT (8N3) (10/1998-06/2006) | 8N3 | 1.8 T | Coupe | Petrol | 120 KW | 1781 ccm | 4 Cylinder | No |
| AUDI | TT (8N3) (10/1998-06/2006) | 8N3 | 1.8 T | Coupe | Petrol | 132 KW | 1781 ccm | 4 Cylinder | No |
| AUDI | TT (8N3) (10/1998-06/2006) | 8N3 | 1.8 T | Coupe | Petrol | 134 KW | 1781 ccm | 4 Cylinder | No |
| AUDI | TT (8N3) (10/1998-06/2006) | 8N3 | 1.8 T | Coupe | Petrol | 140 KW | 1781 ccm | 4 Cylinder | No |
| AUDI | TT (8N3) (10/1998-06/2006) | 8N3 | 3.2 VR6 quattro | Coupe | Petrol | 184 KW | 3189 ccm | 6 Cylinder | Yes |
| AUDI | TT Roadster (8N9) (10/1999-06/2006) | 8N9 | 1.8 T quattro | Convertible | Petrol | 132 KW | 1781 ccm | 4 Cylinder | Yes |
| AUDI | TT Roadster (8N9) (10/1999-06/2006) | 8N9 | 1.8 T quattro | Convertible | Petrol | 134 KW | 1781 ccm | 4 Cylinder | Yes |
| AUDI | TT Roadster (8N9) (10/1999-06/2006) | 8N9 | 1.8 T quattro | Convertible | Petrol | 140 KW | 1781 ccm | 4 Cylinder | Yes |
| AUDI | TT Roadster (8N9) (10/1999-06/2006) | 8N9 | 1.8 T quattro | Convertible | Petrol | 165 KW | 1781 ccm | 4 Cylinder | Yes |
| AUDI | TT Roadster (8N9) (10/1999-06/2006) | 8N9 | 1.8 T quattro | Convertible | Petrol | 168 KW | 1781 ccm | 4 Cylinder | Yes |
| AUDI | TT Roadster (8N9) (10/1999-06/2006) | 8N9 | 1.8 T | Convertible | Petrol | 110 KW | 1781 ccm | 4 Cylinder | No |
| AUDI | TT Roadster (8N9) (10/1999-06/2006) | 8N9 | 1.8 T | Convertible | Petrol | 120 KW | 1781 ccm | 4 Cylinder | No |
| AUDI | TT Roadster (8N9) (10/1999-06/2006) | 8N9 | 1.8 T | Convertible | Petrol | 132 KW | 1781 ccm | 4 Cylinder | No |
| AUDI | TT Roadster (8N9) (10/1999-06/2006) | 8N9 | 1.8 T | Convertible | Petrol | 134 KW | 1781 ccm | 4 Cylinder | No |
| AUDI | TT Roadster (8N9) (10/1999-06/2006) | 8N9 | 1.8 T | Convertible | Petrol | 140 KW | 1781 ccm | 4 Cylinder | No |
| AUDI | TT Roadster (8N9) (10/1999-06/2006) | 8N9 | 3.2 VR6 quattro | Convertible | Petrol | 184 KW | 3189 ccm | 6 Cylinder | Yes |
LSD Doors Water reservoir
Content of delivery: Piece
